Waters 2545, 2707, 2998, and Fraction Collector 3

Direct Applications at BGSU CPS

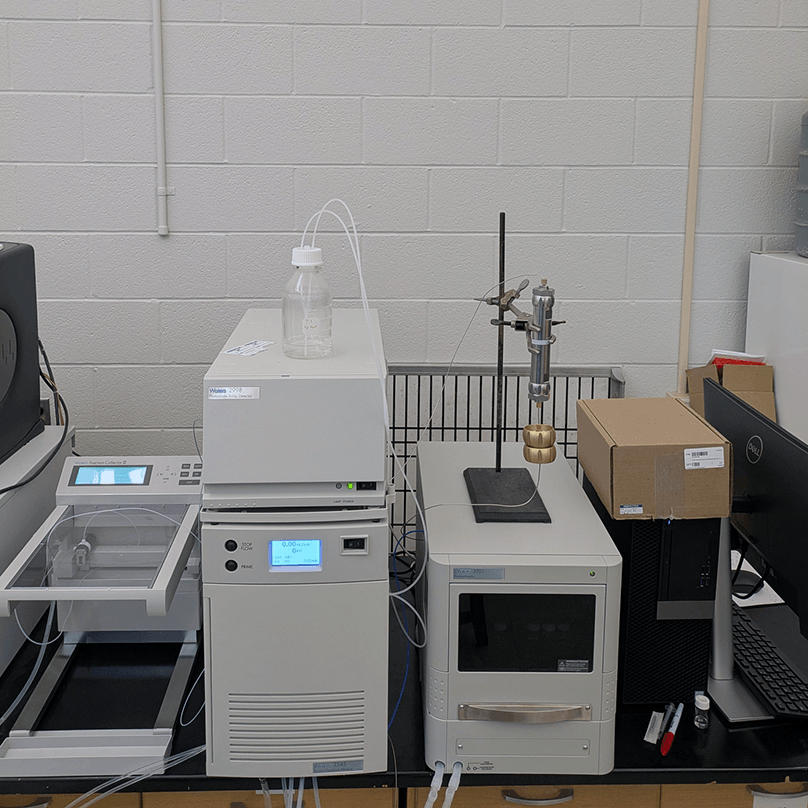

The combination of the Waters 2545, 2707, 2998, and Fraction Collector 3 creates a seamless pipeline for the advanced materials and catalysts developed within the department.

1. Photocatalyst and Sensitizer Purification

This is the core of photochemical synthesis. Whether you are developing ruthenium polypyridyl complexes, porphyrin sensitizers, or BODIPY dyes, purity is paramount.

• The Advantage: The 2545 Binary Gradient Module handles high-flow preparative columns, while the 2998 PDA confirms spectral identity in real-time. Researchers can watch the absorption profile of each peak as it elutes.

• Automation: The Fraction Collector 3 automatically cuts fractions based on UV triggers, replacing hours of tedious manual column chromatography.

2. Photoproduct Identification and Isolation

Photochemical reactions often produce complex mixtures of isomers, ring-opened species, or oxidized byproducts.

• Precision: The 2998 PDA’s 1.2 nm optical resolution distinguishes between closely related compounds.

• 3D Spectral Mapping: Researchers can view the full UV/Vis spectrum at every retention time point, assigning chromophore identity to each peak before collection to ensure the correct reaction products are isolated.

3. Characterization of Reactive Oxygen Species (ROS) Probes

CPS works extensively with molecular probes designed to detect singlet oxygen or other reactive species.

• Sensitivity: With noise levels as low as $10\text{ }\mu\text{AU}$, the PDA can detect trace photoproducts that form in minute quantities.

• Kinetics: The 2707 Autosampler allows for automated time-course studies, injecting aliquots at defined irradiation intervals to track probe response.

4. Photostability and Degradation Studies

To understand how a material holds up under light, researchers can irradiate a solution and run it through the HPLC.

• Efficiency: The 2707 runs a queue of samples taken at different light doses, providing automated degradation kinetics and product profile evolution.

• Verification: The PDA confirms that the degradation peaks match the expected chemical profiles, rather than being artifacts or impurities.

5. High-Purity Sample Prep for Photophysics

Before conducting expensive or time-consuming femtosecond transient absorption or time-resolved emission experiments, sample purity must be verified.

• The QC Filter: Impurities can completely dominate photophysical signals. Running a sample through this system provides both chromatographic purity and a UV/Vis spectrum compared to literature values in a single step.

Why the 2998 PDA is Vital for Photochemistry

Unlike standard single-wavelength detectors, the Photodiode Array (PDA) is specifically tailored to the needs of the Center:

• Complex Spectra: Photochemical compounds have structured spectra (e.g., Soret bands in porphyrins or MLCT bands in metal complexes). The PDA captures the entire electronic signature at every point.

• Peak Purity: The system flags whether a chromatographic peak is a single compound or co-eluting species by checking spectral consistency across the peak.

• Fast Assays: With sampling rates from 1 to 80 Hz, the system accommodates both standard and high-speed analytical methods.

Operational Workflow: The CPS Pipeline

For a researcher at BGSU CPS, the typical workflow on this system is highly automated:

1. Synthesize: A new iridium photocatalyst or light-harvesting molecule.

2. Screen: Load the crude mixture into the 2707 Autosampler; run an analytical gradient.

3. Identify: Use the 2998 PDA to find the target peak by its specific MLCT absorption profile.

4. Scale: Switch to a preparative column and increase flow with the 2545 Module.

5. Collect: The Fraction Collector 3 isolates the purified material automatically.

6. Verify: Re-inject the purified material to confirm a purity of $\ge 99\%$.

Strategic Impact: For the CPS website or grant applications, this system should be highlighted as core shared infrastructure. It is the vital link that ensures the molecules being studied for solar energy conversion, sensing, and synthesis are of the highest possible quality.
