TA Instruments Discovery HR-2 Hybrid Rheometer

The TA Instruments Discovery HR-2 Hybrid Rheometer is a cornerstone of the Center’s materials characterization suite. By combining a high-sensitivity magnetic bearing with advanced force rebalance transducer technology, it allows CPS researchers to probe the physical properties of complex fluids and soft materials with extreme precision.

In a research environment dedicated to photochemistry, where molecular changes often lead to dramatic shifts in physical state (such as photo-curing or light-induced gelation), the HR-2 provides the critical data needed to bridge the gap between chemical reaction and material performance.

## Impact on CPS Research & Development

• Real-Time Photo-Rheology: One of the most significant benefits to the CPS is the ability to monitor "curing" in real-time. By coupling the HR-2 with an external light source, researchers can observe how a liquid resin transforms into a solid polymer network upon UV exposure, measuring changes in viscosity and modulus as they happen.

• Characterization of Complex Fluids: The HR-2’s high sensitivity allows for the study of delicate molecular assemblies, such as supramolecular gels and liquid crystals, which are central to many CPS projects. It can detect the subtle "yield point" where a material begins to flow, providing insight into its internal structure.

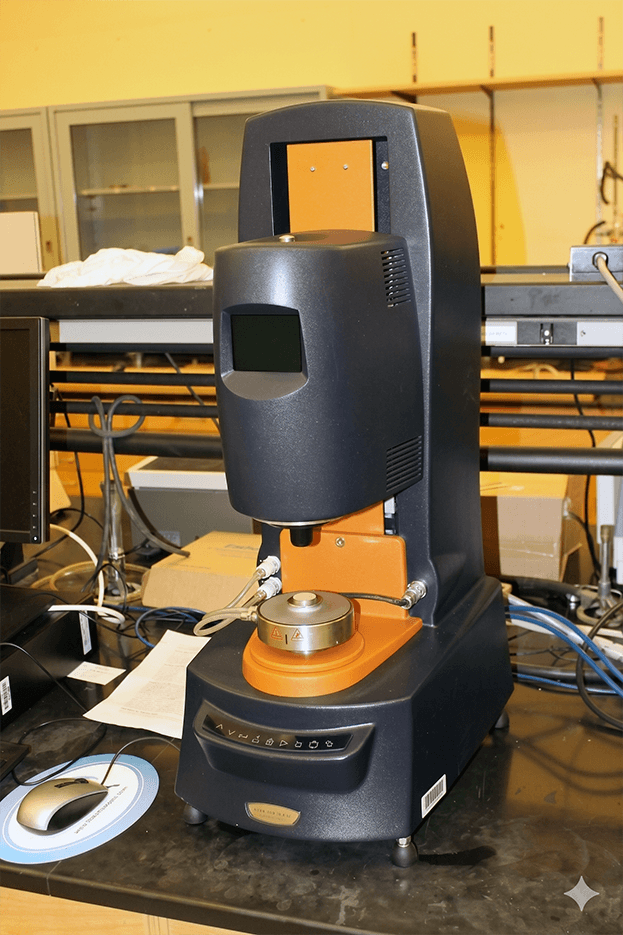

• Thermal Stability Analysis: With its integrated temperature control systems (like the Peltier Plate seen in the image), the HR-2 enables researchers to study how photochemical materials behave across a wide temperature range, ensuring they remain stable under real-world operating conditions.

• Viscoelastic Profiling: The system provides a complete picture of a material's viscoelasticity (its balance of liquid-like and solid-like behavior). This is essential for developing new functional materials, from 3D printing inks to stimuli-responsive coatings.

• ## Key Technical Capabilities
• Magnetic Bearing
• Minimizes internal friction, allowing for the measurement of ultra-low viscosity fluids.
• Peltier Temperature Control
• Provides rapid and precise heating/cooling for high-throughput testing.
• Dynamic Mechanical Analysis (DMA)
• Enables the testing of solid samples in tension, bending, or compression modes.
• TRIOS Software
• Streamlines data analysis and allows for complex modeling of molecular weight distributions from rheological data.

## Strategic Value to the Center

As we continue to celebrate 40 years of innovation at the CPS, the Discovery HR-2 represents our commitment to multimodal research. It isn't just about understanding the light; it’s about understanding the matter that light creates.

The presence of the HR-2 in our labs enhances our ability to secure industrial partnerships and federal grants by providing "industrial-standard" data that is directly applicable to manufacturing and product development. It remains a vital tool for training graduate students in the physical characterization techniques required for careers in both academia and the chemical industry.
